Shells: the complete model

The complete model: allowing nodules and spikes

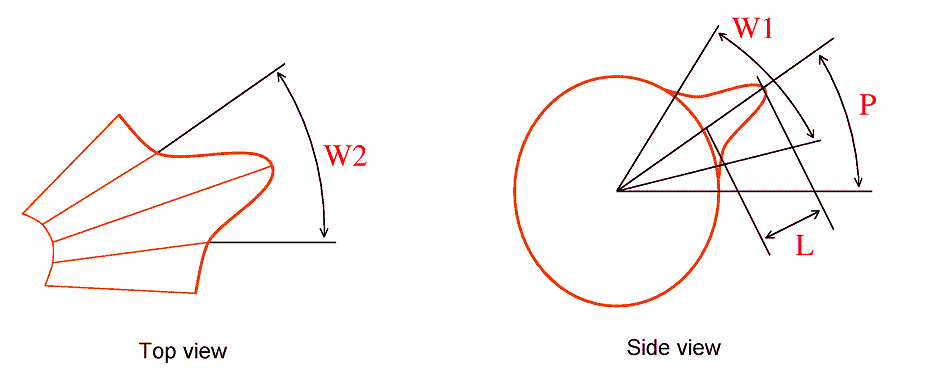

In case we want to add nodules, bumps and spikes to the shell, it suffices to include some additional parameters [1], illustrated in the following picture:

W1: width of nodule along the generating curve (in s-direction)
W2: width of nodule along the helico-spiral (in -direction)
L: height of nodule at =0
P: position of nodule in terms of the angle s

and further

N: number of nodules per whorl.

From [M. B. Cortie, Modelling the surface bumps and spikes of molluscan shells, in: Proceedings of the First International Conchology Conference (Ed. C.R. Illert), Hadronic Press, Palm Harbor, 1995, pp. 46-65], if a surface sculpture term is superimposed in the generating ellipse C, it suffices to replace the equation r_e(s) of C

where, in case W1=0 or W2=0 or N=0,

and, in case W1, W2 and N are nonzero,

with

Important note: this model contains the previous case of shells with no nodules; it suffices to make L=0.

Based on the above description, the parametric equations of the shell depend on 14 parameters

(the latter four are only of relevance in case L is nonzero).

Varying parameters L, P, W1, W2 and N changes significantly the shape of the shell. In order to understand better the effect of these new parameters in the shape of the shell, see the following interactive applets in the web page of the Portuguese project Atractor (of popularization of mathematics) [10]:

Effect of the variation of L, P and W1 along the generating curve.

Effect of the variation of L, P and W2 along the helico-spiral.

Effect on the shell shape of the variation of: parameter L, parameter P, parameter W1, parameter W2, parameter N.

Finally, the dimensions:

min, max: min and max values of
smin, smax: min and max values of s

The parameters d and sd determine the resolution of the generated shell (for example, if the shell contains nodules that are thin and long we have to use very small d and sd values in order to shape the nodules).

Implementation of the model

The implementation of this model with Mathematica can be effected in the following way (since the XYZ referential we use in our model has opposite orientation to the one used by Mathematica, we change the sign in coordinate y):

l[n_][theta_] = (2Pi/n)((n theta/2Pi) - IntegerPart[n theta/2Pi]);

k[a_,b_,ll_,p_,w1_,w2_,n_][s_,theta_] = If[w1=0||w2=0||n=0,0, ll Exp[-(2(s-p)/w1)^2-(2l[n][theta]/w2)^2]];

h[a_,b_,ll_,p_,w1_,w2_,n_][s_,theta_] = (1/(Sqrt[(Cos[s]/a)^2+(Sin[s]/b)^2])) + k[a_,b_,ll_,p_,w1_,w2_,n_][s_,theta_];

x[d_,aa_,beta_,phi_,omega_,mu_,alpha_,a_,b_,ll_,p_,w1_,w2_,n_][theta_,s_] =

      d(aa Sin[beta] Cos[theta] + h[a,b,ll,p,w1,w2,n][s,theta]

             (Cos[s+phi] Cos[theta+omega] - Sin[mu] Sin[s+phi] Sin[theta+omega])) Exp[theta Cot[alpha]];

y[aa_,beta_,phi_,omega_,mu_,alpha_,a_,b_,ll_,p_,w1_,w2_,n_][theta_,s_] =

      (-aa  Sin[beta] Sin[theta] - h[a,b,ll,p,w1,w2,n][s,theta]

             (Cos[s+phi] Sin[theta+omega] + Sin[mu] Sin[s+phi] Cos[theta+omega] ))Exp[theta Cot[alpha]];

z[aa_,beta_,phi_,mu_,alpha_,a_,b_,ll_,p_,w1_,w2_,n_][theta_,s_] =

      (-aa  Cos[beta] + h[a,b,ll,p,w1,w2,n][s,theta] Sin[s+phi] Cos[mu]) Exp[theta Cot[alpha]];

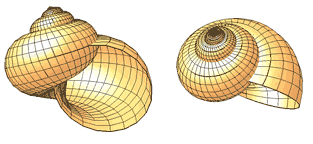

%EXAMPLE: BOAT EAR MOON SHELL

With[{d=1,aa=25,beta=42Degree,phi=70Degree,omega=30Degree,mu=10Degree,alpha=83Degree,a=12,b=20,ll=0,p=0,w1=0,w2=0,n=0},

ParametricPlot3D[{x[d,aa,beta,phi,omega,mu,alpha,a,b,ll,p,w1,w2,n][theta,s],

                  y[aa,beta,phi,omega,mu,alpha,a,b,ll,p,w1,w2,n][theta,s]

                  z[aa,beta,phi,mu,alpha,a,b,ll,p,w1,w2,n][theta,s]},

                  {theta, -4Pi, 4Pi}, {s, 0 Degree, 360 Degree},

                  Boxed -> False, Axes -> False, PlotPoints -> {100,20}, PlotRange -> All, ViewPoint -> {-1,-3,0.5}]]
